MK3 Mercedes Universal ESL / ELV Steering Lock Emulator W204 W207 W212 W176 W246

  • Brand: MK3
  • Product Code: ELV-MB-MK-2
  • Availability: 10

  • 34.00€

  • Ex Tax: 28.10€

Mercedes ESL / ELV W204 / W207 / W212 / W176 / W246 emulator installation

  1. Disconnect the original ELV / ESL steering lock connector from the vehicle.
  2. If the steering lock is in the locked position, the original ESL / ELV unit must be unlocked or removed from the vehicle.
  3. Calculate the Mercedes EIS / EZS password using a suitable Mercedes key programming device.
  4. Program the Mercedes ESL / ELV emulator using a Mercedes key programming device.
  5. Connect the Mercedes ESL / ELV emulator to the vehicle and check system operation.

Mercedes ESL / ELV emulator indicator:

After programming the emulator and connecting it to the vehicle or to a test cable, insert the key into the EIS / EZS.

  • If the green indicator lights up on the emulator, programming has been completed successfully and the vehicle is ready to operate.
  • If the red indicator lights up on the emulator, the programming procedure was not completed correctly or the key used does not belong to this EIS / EZS system.
  • If the emulator indicator does not light up, check the vehicle power supply and the condition of the wiring / cables.

Additional information:

  • The Mercedes W204 / W207 / W212 ESL / ELV emulator supports most Mercedes key programming devices.
  • The emulator can be reprogrammed and reused after writing new data.
  • The emulator indicator helps determine the emulator programming status.

Supported programming devices:

  • AVDI Abrites
  • Autel
  • CGDI MB
  • Xhorse VVDI MB BGA

Programming videos:

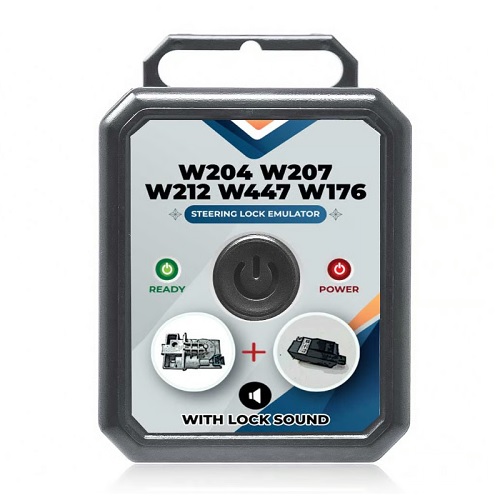

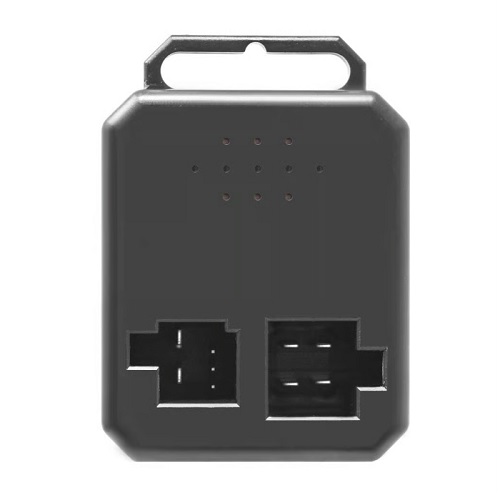

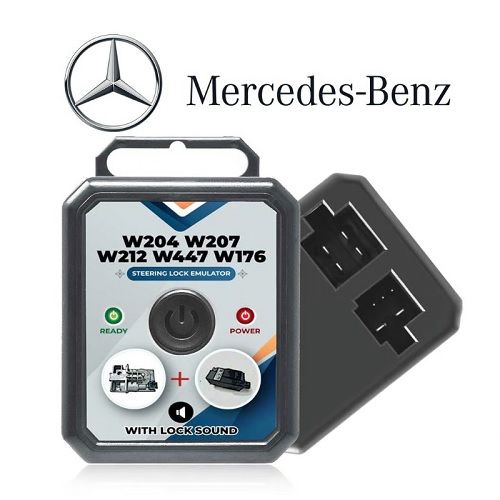

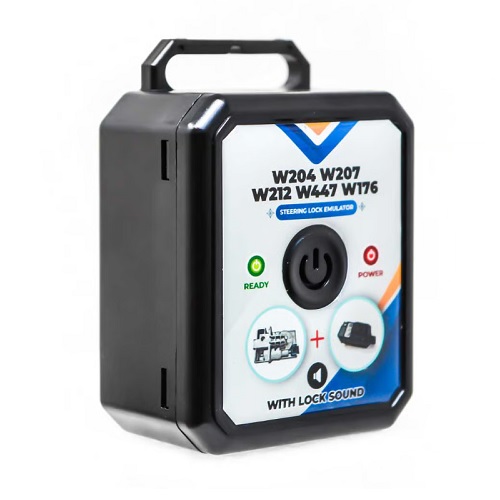

The MK3 Mercedes Universal ESL / ELV emulator is designed to replace the electronic steering column lock ESL / ELV on compatible Mercedes-Benz W204, W207, W212, W176, W246 vehicles.

Only for vehicles with the FBS3 system.

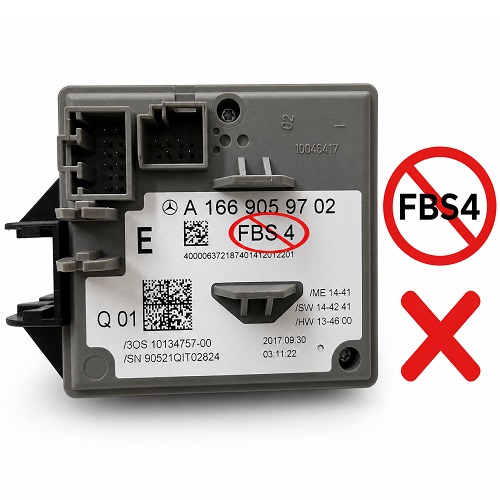

If FBS 4 is indicated on the ignition switch / EIS / EZS, this emulator is not applicable!

Main features:

  • Compatibility: Mercedes-Benz FBS3 -  W204, W207, W212, W176, W246
  • System: electronic steering column lock ESL / ELV
  • Function: emulates the signal of a working ESL / ELV module
  • Installation: programming / vehicle adaptation is required

Advantages:

  • Used in case of electronic steering column lock failure
  • Can be used as an alternative to replacing the original ESL / ELV module
  • Supports steering lock sound simulation
  • Extended compatibility with several Mercedes-Benz platforms
  • Compact size, convenient installation

Supported programming tools:

  • AVDI Abrites
  • Autel
  • CGDI MB
  • Xhorse VVDI MB BGA KTP

Additional information:

More about Mercedes ESL / ELV steering lock problems, fault symptoms and emulator application can be found in the article:

Mercedes steering lock repair — ESL / ELV emulator

Important:

The emulator is an electronic component. After connection to the vehicle, programming, installation or actual use, the item cannot be returned as a new unused product.

Product inspection does not include using the emulator in a vehicle as a temporary replacement for a faulty ESL / ELV module.

Tags: Mercedes ESL emulator, Mercedes ELV emulator, Mercedes steering lock emulator, ESL emulator W204, ESL emulator W207, ESL emulator W212, ESL emulator W176, ESL emulator W246, MK3 Mercedes emulator
